All of the following tool families can be manufactured in various materials such as carbide, CBN, and ceramic. Insert dimensions: 9.00 – 33.00 mm Insert thickness: 3.00 – 7.00 mm Inner hole: Ø 2.50 – 6.00 mm
Holes and operations
The multiple clamping options of the TTB EDGE allow sharpening inserts with one, two, or even without holes.
Peripheral, profile, and chipbreaker sharpening are possible in a single clamping.

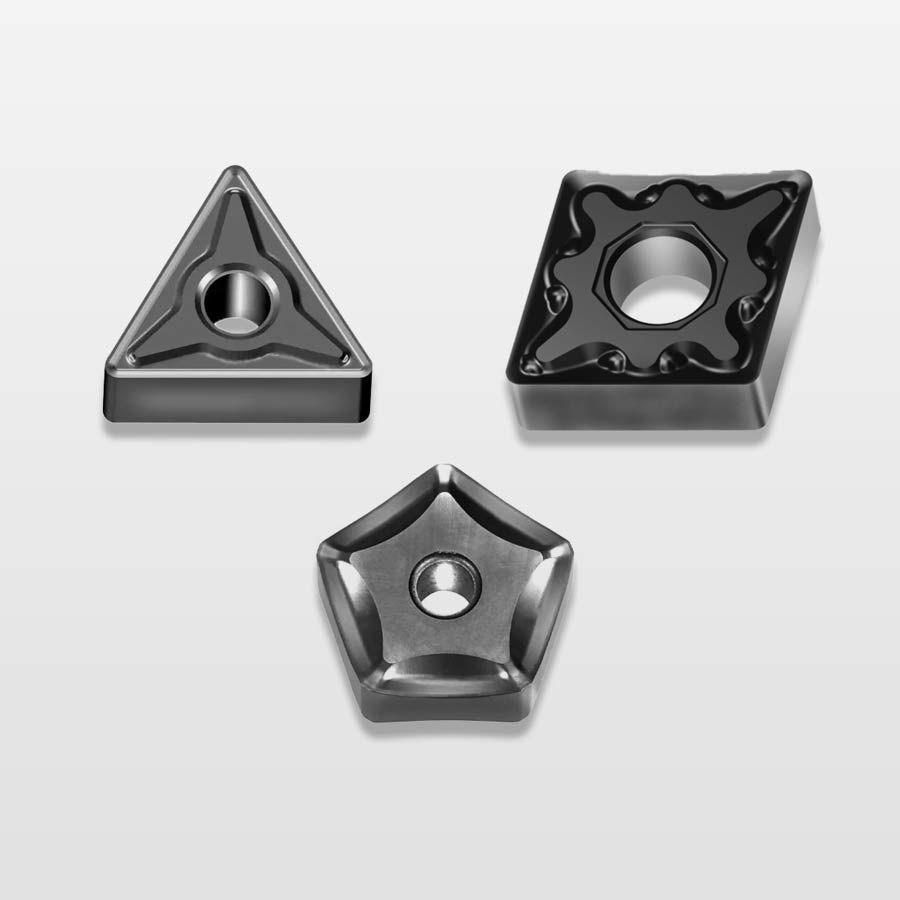

ISO inserts
• Turning inserts • Milling inserts

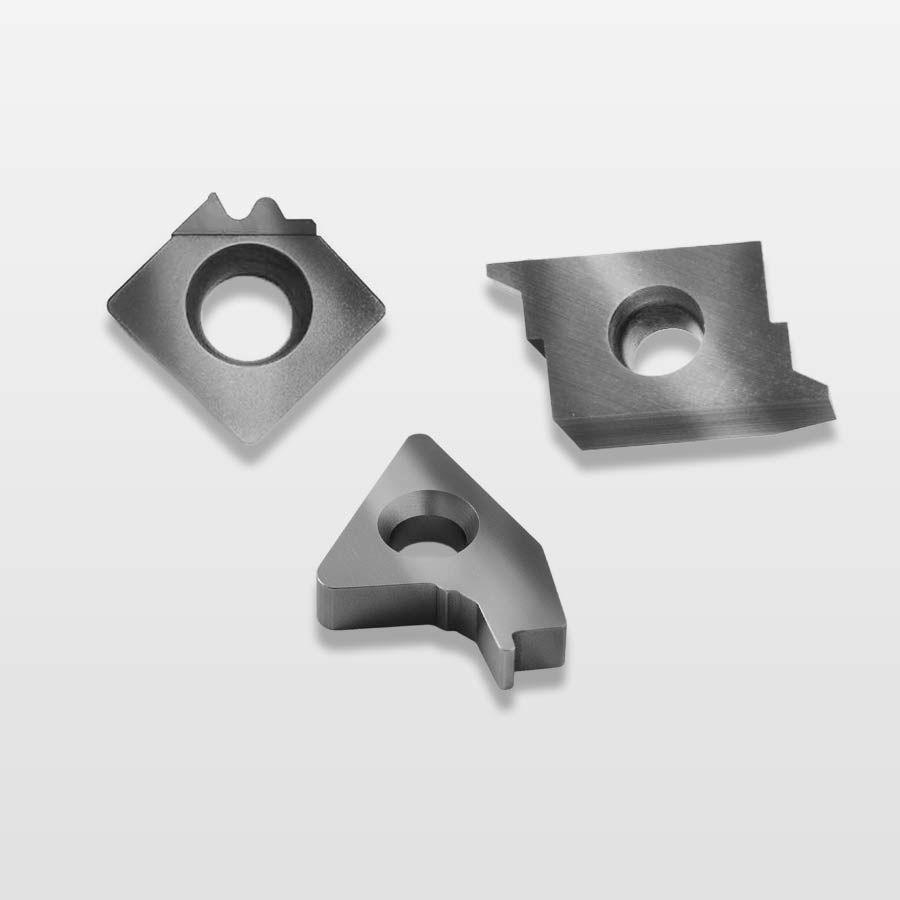

Form inserts
• Milling inserts • Turning inserts

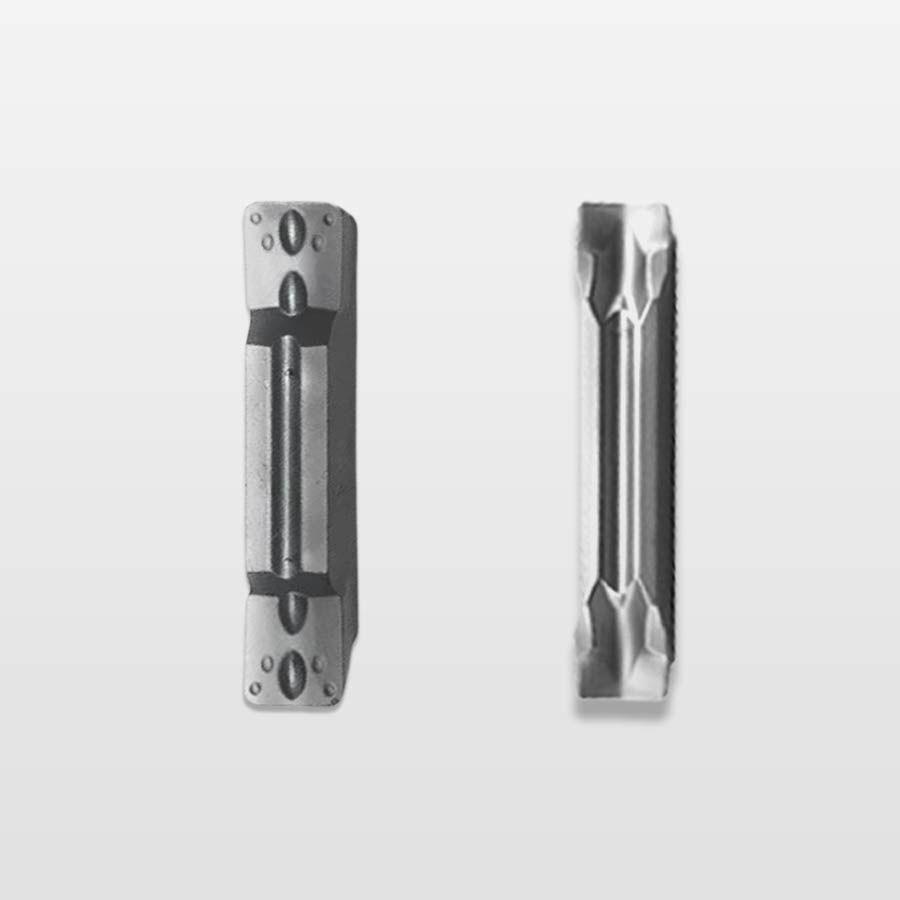

Cutting inserts
• With a straight cutting edge • V-shaped • Full-radius

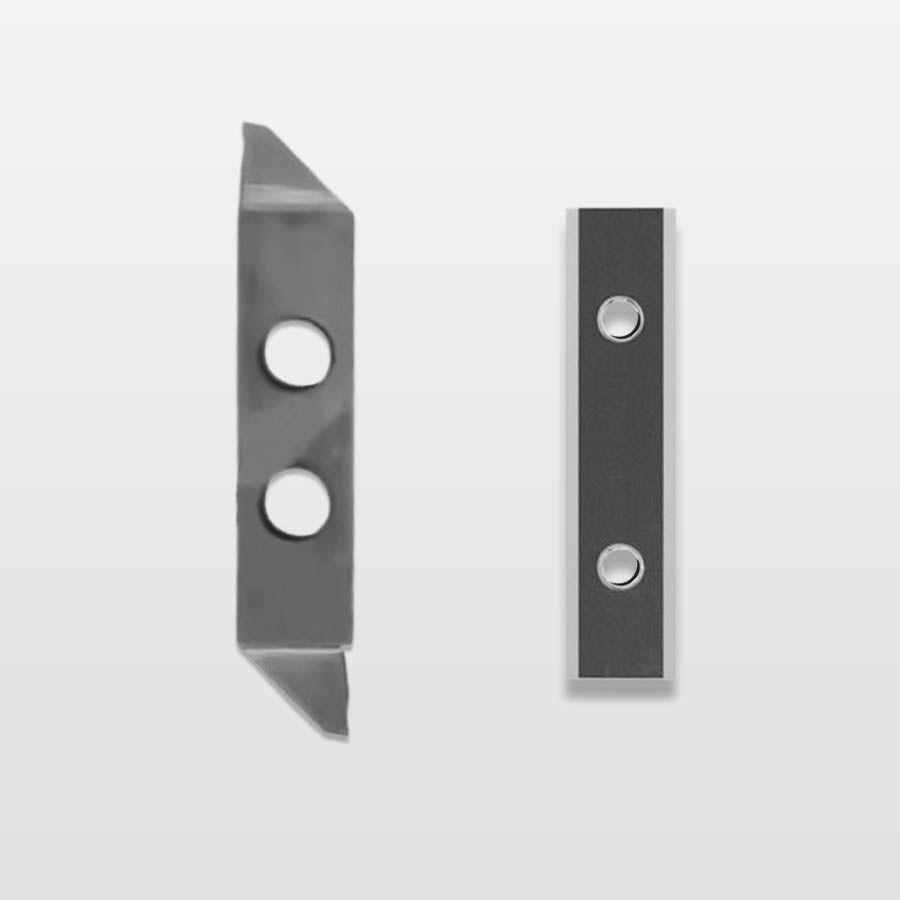

Woodworking inserts
• With 1, 2 or 3 holes • With various hole spacings

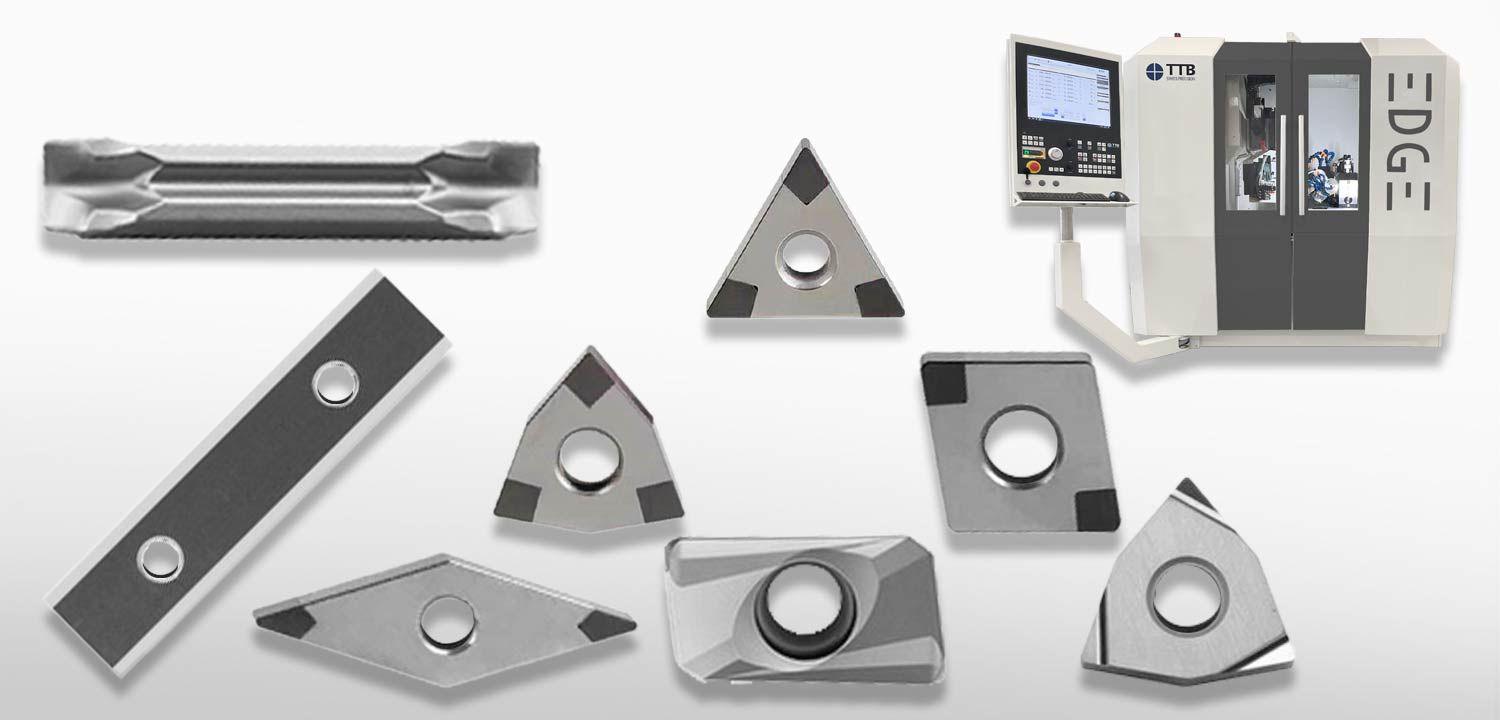

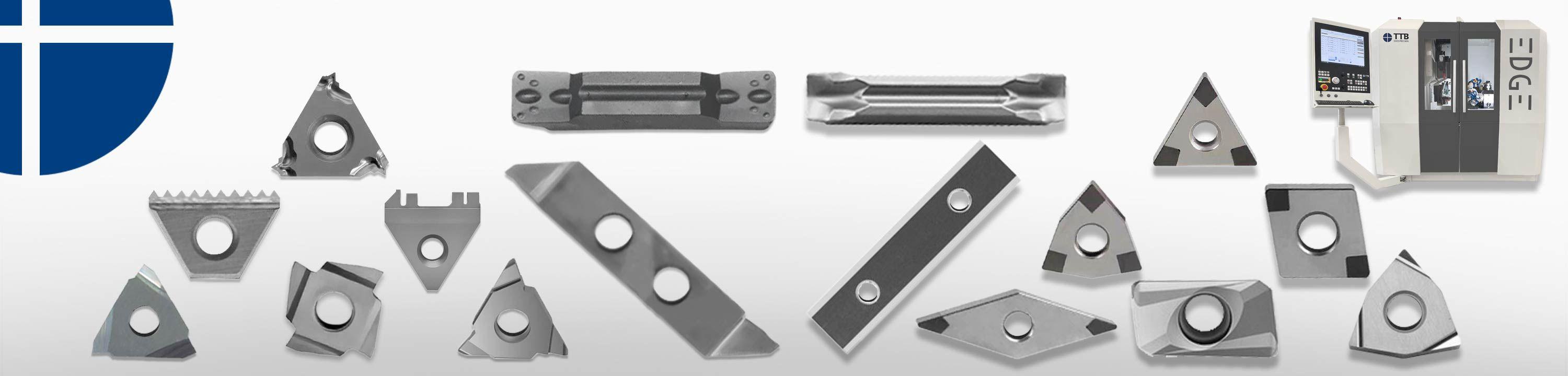

Grinding machines for inserts
Edge
- 5-axis automatic grinding machine - Integrated gantry loader with 3 additional CNC axes - Two pallets in the loading area - Loading capacity: up to 204 pieces - Machine dimensions: 200 x 200 x 218 cm (L x W x H)
- 5-axis automatic grinding machine - Integrated gantry loader with 3 additional CNC axes - Four pallets in the loading area - Loading capacity: up to 612 pieces - Machine dimensions: 230 x 200 x 218 cm (L x W x H)
